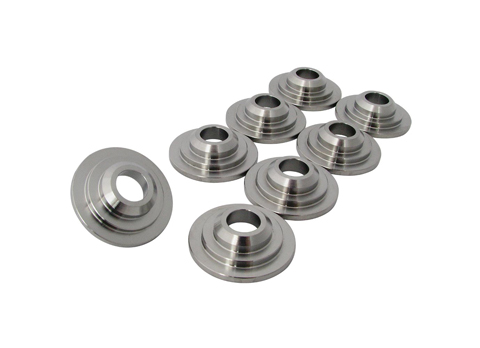

Valve Retainer

Function of Valve Retainers

The valve retainer, also known as the valve spring retainer, is a critical component in an internal combustion engine's valve train. Its valve retainer function ensures precise valve operation for optimal performance. The valve spring retainer function includes:

Holds the Valve Spring in Place: The engine valve retainer sits atop the valve spring, secured by collets, anchoring the spring to maintain tension and alignment, ensuring consistent valve movement.

Transfers Spring Force to the Valve: The valve retainer transmits spring force to close the valve after opening, ensuring proper sealing for efficient combustion and power delivery.

Maintains Valve Train Stability: By securing the valve springs and retainers, it prevents valve float at high RPMs, critical in performance engines. This enhances durability, efficiency, and power, especially in turbocharged or high-revving engines, ensuring reliable operation under demanding conditions.

Types of Valve Retainers

Valve retainers vary in design and material to meet diverse engine needs, balancing durability, weight, and performance.

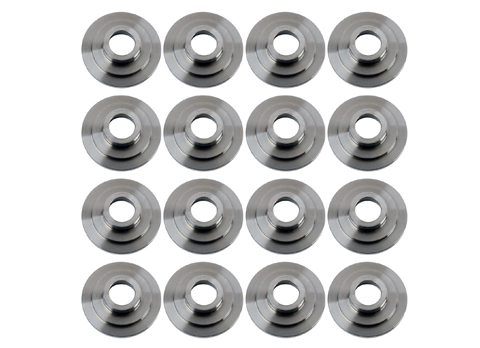

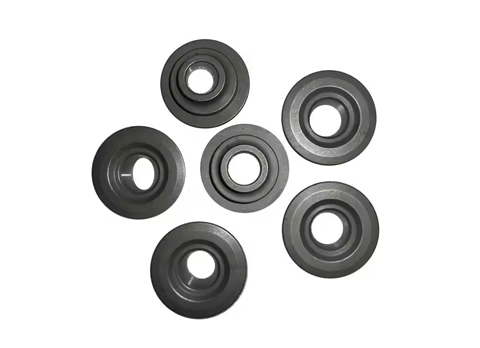

Standard Valve Retainers: Made from carbon steel or alloy steel, these engine valve retainers are used in OEM engines. They offer cost-effective strength for daily-driven vehicles, ensuring reliable performance under standard conditions.

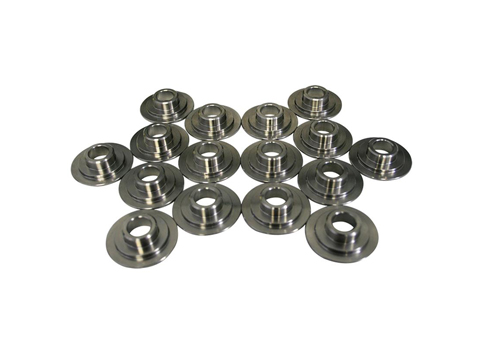

Performance/Titanium Valve Retainers: Constructed from lightweight titanium or aluminum alloys, these valve spring retainers reduce valve train mass, enabling higher RPMs without valve float. Common in race or turbocharged engines, they boost responsiveness, though at a higher cost.

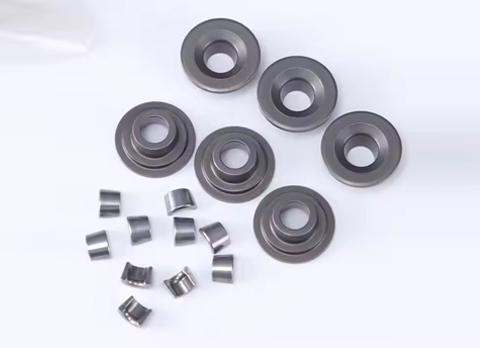

Grooved vs. Flat-Base Valve Retainers: Grooved valve retainers secure split collets for reliable valve retention in most engines. Flat-base retainers, paired with tulip-style collets, are used in performance setups for enhanced stability under extreme conditions, ensuring precise valve control in high-revving applications.

Common Valve Retainer Issues

Valve retainers endure significant stress, leading to issues that can compromise engine performance and reliability.

Cracking or Fatigue: High RPMs or aggressive cam profiles can cause engine valve retainers to crack or suffer fatigue, weakening their structure and risking failure.

Worn Grooves: Worn grooves in valve spring retainers may loosen collets, leading to valve drop, which can cause catastrophic damage like piston or cylinder head failure.

Corrosion: Exposure to heat, oil breakdown, or contaminants can corrode valve retainers, reducing strength, especially in older or poorly maintained engines.

Improper Installation: Incorrectly seated valve springs and retainers or mismatched components can disrupt valve train dynamics, causing misalignment, excessive wear, or failure, leading to costly repairs. Regular inspection of the valve retainer function is essential to prevent these issues and maintain engine reliability.

Valve Retainer Replacement Tips

Proper valve retainer replacement is vital for engine performance and preventing failures.

Use a Valve Spring Compressor: A specialized tool is essential for safely removing and installing engine valve retainers, compressing the spring to release tension without damage.

Match Engine Valve Retainer to Valve & Collet Type: Ensure the valve spring retainer matches the valve stem and collet design (OEM or performance specs) to avoid instability or premature wear.

Inspect for Wear: Check valve retainers for cracks, worn grooves, or deformation before installation. Even minor damage can lead to failure under stress, so replace suspect parts.

Consider Upgrading: For high-performance builds, titanium valve spring retainers reduce valve train mass, improving RPM capability and reliability. Upgrading is ideal with stronger valve springs and retainers or aggressive camshafts, enhancing engine efficiency and durability.

When to Replace Valve Retainers?

Timely replacement of valve retainers prevents engine damage and ensures optimal performance. Replace them:

During a Valve Job or Head Rebuild: Inspect and replace engine valve retainers during cylinder head or valve servicing to ensure compatibility and prevent future issues.

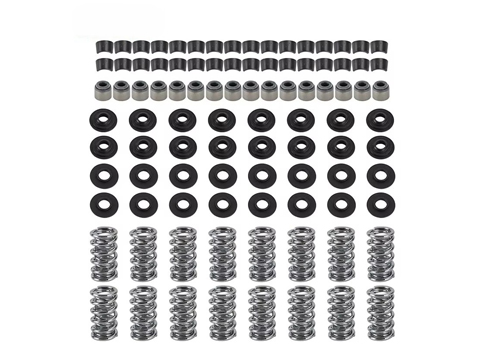

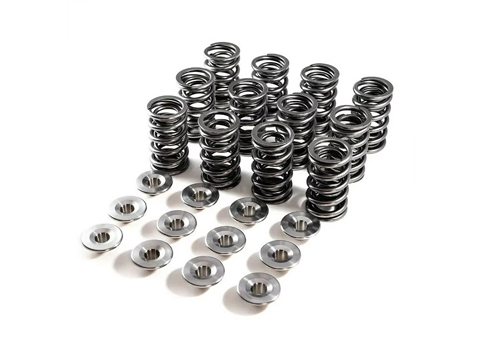

If Upgrading Valve Springs or Camshafts: Upgraded valve springs and retainers or cams increase valve train stress, requiring stronger or lighter valve spring retainers (e.g., titanium) for higher RPMs.

If Engine Has Valve Train Noise or Failure Symptoms: Ticking, clunking, or misfires may indicate worn valve retainers. Immediate replacement is critical to avoid valve drop or catastrophic failure. Regular maintenance, including checking the valve retainer function during tune-ups, ensures longevity, especially in high-performance or heavily used engines.
