OEM Cylindrical Roller Bearings Manufacturer

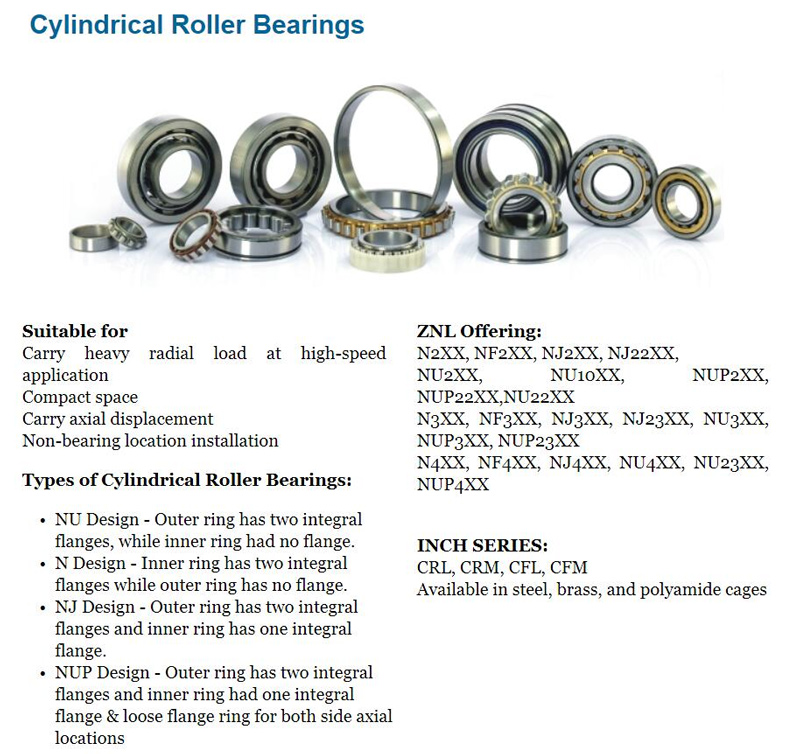

Specifications of Cylindrical Roller Bearings

Bearing numbers					Boundary dimensions					Basic load ratings		Limiting speeds		Weight
Bearing numbers					mm					N		r/min		kg
NU	NJ	NUP	N	NF	d	D	B	r	r1	dynamic Cr	static Cor	grease	oil	(approx.)
NU204	NJ	NUP	N	NF	20	47	14	1	0.6	16600	13900	17000	20000	0.111
NU204E	NJ	NUP	-	-		47	14	1	0.6	25700	22600	15000	18000	0.122
NU2204	NJ	NUP	N	-		47	18	1	0.6	22200	20300	15000	18000	0.144
NU2204E	NJ	NUP	-	-		47	18	1	0.6	30500	28300	14000	16000	0.158
NU304	NJ	NUP	N	NF		52	15	1.1	0.6	23100	19200	14000	17000	0.153
NU304E	NJ	NUP	-	-		52	15	1.1	0.6	31500	26900	13000	15000	0.176
NU2304	NJ	NUP	N	-		52	21	1.1	0.6	33000	30000	13000	15000	0.25
NU2304E	NJ	NUP	-	-		52	21	1.1	0.6	42000	39000	12000	14000	0.242
NU1005	NJ	NUP	N	-	25	47	12	0.6	0.3	15100	14100	16000	19000	0.092
NU205	NJ	NUP	N	NF		52	15	1	0.6	18800	17000	14000	16000	0.137
NU205E	NJ	NUP	-	-		52	15	1	0.6	29300	27700	13000	15000	0.151
NU2205	NJ	NUP	N	-		52	18	1	0.6	25100	24700	13000	15000	0.166
NU2205E	NJ	NUP	-	-		52	18	1	0.6	35000	34500	11000	13000	0.186
NU305	NJ	NUP	N	NF		62	17	1.1	1.1	31500	27700	12000	14000	0.241
NU305E	NJ	NUP	-	-		62	17	1.1	1.1	41500	37500	11000	13000	0.275
NU2305	NJ	NUP	N	-		62	24	1.1	1.1	46000	45000	11000	12000	0.343
NU2305E	NJ	NUP	-	-		62	24	1.1	1.1	57000	56000	9700	11000	0.386
NU405	NJ	NUP	N	NF		80	21	1.5	1.5	46500	40000	8500	10000	0.55
NU1006	NJ	NUP	N	-	30	55	13	1	0.6	19700	19600	14000	16000	0.13
NU206	NJ	NUP	N	NF		62	16	1	0.6	24900	23300	12000	14000	0.207
NU206E	NJ	NUP	-	-		62	16	1	0.6	39000	37500	11000	13000	0.226
NU2206	NJ	NUP	N	-		62	20	1	0.6	35000	36000	11000	13000	0.261
NU2206E	NJ	NUP	-	-		62	20	1	0.6	49000	50000	9700	11000	0.297
NU306	NJ	NUP	N	NF		72	19	1.1	1.1	38500	35000	10000	12000	0.358
NU306E	NJ	NUP	-	-		72	19	1.1	1.1	53000	50000	93000	11000	0.398
NU2306	NJ	NUP	N	-		72	27	1.1	1.1	51500	51000	9000	11000	0.513
NU2306E	NJ	NUP	-	-		72	27	1.1	1.1	74500	77500	8300	9700	0.58
NU3306	-	-	-	-		72	30.2	1.1	1.1	69000	74000	7000	11000
NU406	NJ	NUP	N	NF		90	23	1.5	1.5	62500	55000	7300	8500	0.751
NU1007	NJ	NUP	N	-	35	62	14	1	0.6	22600	23200	12000	15000	0.179
NU207	NJ	NUP	N	NF		72	17	1.1	0.6	35500	34000	11000	12000	0.295
NU207E	NJ	NUP	-	-		72	17	1.1	0.6	50500	50000	9500	11000	0.327
NU2207	NJ	NUP	N	-		72	23	1.1	0.6	52000	55500	9500	11000	0.404
NU2207E	NJ	NUP	-	-		72	23	1.1	0.6	61500	65500	8500	10000	0.455
NU307	NJ	NUP	N	NF		80	21	1.5	1.1	49500	47000	9000	11000	0.461
NU307E	NJ	NUP	-	-		80	21	1.5	1.1	71000	71000	8100	9600	0.545
NU2307	NJ	NUP	N	-		80	31	1.5	1.1	64500	65500	7900	9300	0.712
NU2307E	NJ	NUP	-	-		80	31	1.5	1.1	99000	109000	7200	8500	0.78
NU3307	-	-	-	-		80	34.9	1.5	1.5	81000	89000	7000	10000
NU407	NJ	NUP	N	NF		100	25	1.5	1.5	75500	69000	6400	7500	0.99
NU1008	NJ	NUP	N	-		68	15	1	0.6	27300	29000	11000	13000	0.22
NU208	NJ	NUP	N	NF		80	18	1.1	1.1	43800	43000	9400	11000	0.378
NU208E	NJ	NUP	-	-		80	18	1.1	1.1	55500	55500	8500	10000	0.426
NU2208	NJ	NUP	N	-		80	23	1.1	1.1	58000	62000	8500	10000	0.49
NU2208E	NJ	NUP	-	-		80	23	1.1	1.1	72500	77500	7600	8900	0.552
NU308	NJ	NUP	N	NF		90	23	1.5	1.5	58500	57000	8000	9400	0.658
NU308E	NJ	NUP	-	-		90	23	1.5	1.5	83000	81000	7200	8500	0.754
NU2308	NJ	NUP	N	-		90	33	1.5	1.5	82500	88000	7000	8200	0.951
NU2308E	NJ	NUP	-	-		90	33	1.5	1.5	114000	122000	6400	7500	1.06
NU408	NJ	NUP	N	NF		110	27	2	2	95500	89000	5700	6700	1.3
NU1009	NJ	NUP	N	-		75	16	1	0.6	31000	34000	9900	12000	0.28
NU209	NJ	NUP	N	NF		85	19	1.1	1.1	46000	47000	8400	9900	0.432
NU209E	NJ	NUP	-	-		85	19	1.1	1.1	63000	66500	7600	9000	0.495
NU2209	NJ	NUP	N	-		85	23	1.1	1.1	61500	68000	7600	9000	0.53
NU2209E	NJ	NUP	-	-		85	23	1.1	1.1	76000	84500	6800	8000	0.6
NU309	NJ	NUP	N	NF		100	25	1.5	1.5	79000	77500	7200	8400	0.877
NU309E	NJ	NUP	-	-		100	25	1.5	1.5	97500	98000	6500	7600	0.996
NU2309	NJ	NUP	N	-		100	36	1.5	1.5	106000	113000	6300	7400	1.27
NU2309E	NJ	NUP	-	-		100	36	1.5	1.5	137000	153000	5700	6800	1.41
NU409	NJ	NUP	N	NF		120	29	2	2	115000	36000	5100	6000	1.62
NU1010	NJ	NUP	N	-		80	16	1	0.6	32000	36000	8900	11000	0.295
NU210	NJ	NUP	N	NF		90	20	1.1	1.1	50500	54500	7600	9000	0.47
NU210E	NJ	NUP	-	-		90	20	1.1	1.1	66000	72000	6900	8100	0.54
NU2210	NJ	NUP	N	-		90	23	1.1	1.1	67500	78500	6900	8100	0.571
NU2210E	NJ	NUP	-	-		90	23	1.1	1.1	79500	91500	6200	7300	0.652
NU310	NJ	NUP	N	NF		110	27	2	2	87000	86000	6500	7700	1.14
NU310E	NJ	NUP	-	-		110	27	2	2	110000	113000	5900	6900	1.3
NU2310	NJ	NUP	N	-		110	40	2	2	121000	131000	5700	6700	1.7
NU2310E	NJ	NUP	-	-		110	40	2	2	163000	187000	5200	6100	1.9
NU410	NJ	NUP	N	NF		130	31	2.1	2.1	139000	136000	4700	5500	2.02
NU1011	NJ	NUP	N	-		90	18	1.1	1	37500	44000	8200	9700	0.442
NU211	NJ	NUP	N	NF		100	21	1.5	1.1	61000	66500	6900	8200	0.638
NU211E	NJ	NUP	-	-		100	21	1.5	1.1	82500	93000	6300	7400	0.718
NU2211	NJ	NUP	N	-		100	25	1.5	1.1	79000	93000	6300	7400	0.773
NU2211E	NJ	NUP	-	-		100	25	1.5	1.1	97000	114000	5600	6600	0.968
NU311	NJ	NUP	N	NF		120	29	2	2	111000	111000	5900	7000	1.45
NU311E	NJ	NUP	-	-		120	29	2	2	137000	143000	5300	6300	1.65
NU2311	NJ	NUP	N	-		120	43	2	2	148000	162000	5200	6100	2.17
NU2311E	NJ	NUP	-	-		120	43	2	2	201000	233000	4700	5600	2.37
NU411	NJ	NUP	N	NF		140	33	2.1	2.1	139000	138000	4300	5000	2.48
NU1012	NJ	NUP	N	-		95	18	1.1	1	40000	48500	7500	8800	0.474
NU212	NJ	NUP	N	NF		110	22	1.5	1.5	72000	80000	6400	7600	0.818
NU212E	NJ	NUP	-	-		110	22	1.5	1.5	97000	107000	5800	6800	0.923
NU2212	NJ	NUP	N	-		110	28	1.5	1.5	101000	123000	5800	6800	1.06
NU2212E	NJ	NUP	-	-		110	28	1.5	1.5	131000	157000	5200	6100	1.21
NU312	NJ	NUP	N	NF		130	31	2.1	2.1	124000	126000	5500	6500	1.8
NU312E	NJ	NUP	-	-		130	31	2.1	2.1	150000	157000	4900	5800	2.05
NU2312	NJ	NUP	N	-		130	46	2.1	2.1	169000	188000	4800	5700	2.71
NU2312E	NJ	NUP	-	-		130	46	2.1	2.1	222000	262000	4400	5200	2.96
NU412	NJ	NUP	N	NF		150	35	2.1	2.1	167000	168000	3900	4600	3
NU1013	NJ	NUP	N	-		100	18	1.1	1	41000	51000	7000	8200	0.485
NU213	NJ	NUP	N	NF		120	23	1.5	1.5	84000	94500	5900	7000	1.02
NU213E	NJ	NUP	-	-		120	23	1.5	1.5	108000	119000	5400	6300	1.21
NU2213	NJ	NUP	N	-	120	31	1.5	1.5	120000	149000	5400	6300	1.4
NU2213E	NJ	NUP	-	-	120	31	1.5	1.5	149000	181000	4800	5600	1.6
NU313	NJ	NUP	N	NF	140	33	2.1	2.1	135000	139000	5100	6000	2.23
NU313E	NJ	NUP	-	-	140	33	2.1	2.1	181000	191000	4600	5400	2.54
NU2313	NJ	NUP	N	-	140	48	2.1	2.1	188000	212000	4400	5200	3.27
NU2313E	NJ	NUP	-	-	140	48	2.1	2.1	248000	287000	4100	4800	3.48
NU413	NJ	NUP	N	NF	160	37	2.1	2.1	195000	203000	3600	4300	3.6
NU1014	NJ	NUP	N	-	110	20	1.1	1	58500	70500	6500	7600	0.699
NU214	NJ	NUP	N	NF	125	24	1.5	1.5	87500	101000	5500	6500	1.12
NU214E	NJ	NUP	-	-	125	24	1.5	1.5	119000	137000	5000	5900	1.3
NU2214	NJ	NUP	N	-	125	31	1.5	1.5	125000	160000	5000	5900	1.47
NU2214E	NJ	NUP	-	-	125	31	1.5	1.5	156000	194000	4500	5200	1.7
NU314	NJ	NUP	N	NF	150	35	2.1	2.1	158000	168000	4700	5500	2.71
NU314E	NJ	NUP	-	-	150	35	2.1	2.1	205000	222000	4200	5000	3.1
NU2314	NJ	NUP	N	-	150	51	2.1	2.1	223000	262000	4100	4800	3.98
NU2314E	NJ	NUP	-	-	150	51	2.1	2.1	274000	325000	3800	4400	4.25
NU414	NJ	NUP	N	NF	180	42	3	3	243000	257000	3400	4000	5.24
NU1015	NJ	NUP	N	-	115	20	1.1	1	60000	74500	6100	7100	0.738
NU215	NJ	NUP	N	NF	130	25	1.5	1.5	101000	118000	5100	6000	1.23
NU215E	NJ	NUP	-	-	130	25	1.5	1.5	130000	156000	4700	5500	1.41
NU2215	NJ	NUP	N	-	130	31	1.5	1.5	136000	172000	4700	5500	1.55
NU2215E	NJ	NUP	-	-	130	31	1.5	1.5	162000	207000	4200	4900	1.79
NU315	NJ	NUP	N	NF	160	37	2.1	2.1	190000	205000	4000	5200	3.28
NU315E	NJ	NUP	-	-	160	37	2.1	2.1	240000	263000	4400	4700	3.74
NU2315	NJ	NUP	N	-	160	55	2.1	2.1	274000	325000	3800	4500	4.87
NU2315E	NJ	NUP	-	-	160	55	2.1	2.1	330000	395000	3500	4100	5.25
NU415	NJ	NUP	N	NF	190	45	3	3	262000	274000	3200	3700	6.22
NU1016	NJ	NUP	N	-	125	22	1.1	1	72500	90500	5700	6700	0.98
NU216	NJ	NUP	N	NF	140	26	2	2	111000	130000	4800	5700	1.5
NU216E	NJ	NUP	-	-	140	26	2	2	139000	167000	4400	5100	1.67
NU2216	NJ	NUP	N	-	140	33	2	2	154000	198000	4400	5100	1.93
NU2216E	NJ	NUP	-	-	140	33	2	2	186000	242000	3900	4600	2.12
NU316	NJ	NUP	N	NF	170	39	2.1	2.1	201000	223000	4100	4800	3.86
NU316E	NJ	NUP	-	-	170	39	2.1	2.1	256000	282000	3700	4400	4.22
NU2316	NJ	NUP	N	-	170	58	2.1	2.1	274000	330000	3600	4200	5.79
NU2316E	NJ	NUP	-	-	170	58	2.1	2.1	355000	430000	3300	3900	6.25
NU416	NJ	NUP	N	NF	200	48	3	3	299000	315000	3000	3500	7.32
NU1017	NJ	NUP	N	-	130	22	1.1	1	74500	95500	5400	6300	1.03
NU217	NJ	NUP	N	NF	150	28	2	2	126000	149000	4500	5300	1.87
NU217E	NJ	NUP	-	-	150	28	2	2	167000	199000	4100	4800	2.11
NU2217	NJ	NUP	N	-	150	36	2	2	178000	232000	4100	4800	2.44
NU2217E	NJ	NUP	-	-	150	36	2	2	217000	279000	3700	4300	2.68
NU317	NJ	NUP	N	NF	180	41	3	3	225000	247000	3900	4600	4.54
NU317E	NJ	NUP	-	-	180	41	3	3	291000	330000	3500	4100	4.81
NU2317	NJ	NUP	N	-	180	60	3	3	315000	380000	3400	4000	6.7
NU2317E	NJ	NUP	-	-	180	60	3	3	395000	485000	3100	3700	7.16
NU417	NJ	NUP	N	NF	210	52	4	4	335000	350000	2800	3300	9.4
NU1018	NJ	NUP	N	-	140	24	1.5	1	88000	114000	5100	5900	1.33
NU218	NJ	NUP	N	NF	160	30	2	2	152000	178000	4300	5000	2.3
NU218E	NJ	NUP	-	-	160	30	2	2	182000	217000	3900	4600	2.44
NU2218	NJ	NUP	N	-	160	40	2	2	207000	265000	3900	4600	3.1
NU2218E	NJ	NUP	-	-	160	40	2	2	242000	315000	3500	4100	3.33
NU318	NJ	NUP	N	NF	190	43	3	3	240000	265000	3700	4300	5.3
NU318E	NJ	NUP	-	-	190	43	3	3	315000	355000	3300	3900	5.72
NU2318	NJ	NUP	N	-	190	64	3	3	325000	395000	3200	3800	7.95
NU2318E	NJ	NUP	-	-	190	64	3	3	435000	535000	2900	3400	8.56
NU418	NJ	NUP	N	NF	225	54	4	4	375000	400000	2600	3100	11.2
NU1019	NJ	NUP	N	-	145	24	1.5	1.1	90500	120000	4800	5600	1.4
NU219	NJ	NUP	N	NF	170	32	2.1	2.1	166000	195000	4000	4700	2.78
NU219E	NJ	NUP	-	-	170	32	2.1	2.1	220000	265000	3600	4300	3.02
NU2219	NJ	NUP	N	-	170	43	2.1	2.1	230000	298000	3600	4300	3.79
NU2219E	NJ	NUP	-	-	170	43	2.1	2.1	286000	370000	3300	3800	4.14
NU319	NJ	NUP	N	NF	200	45	3	3	274000	310000	3400	4000	6.13
NU319E	NJ	NUP	-	-	200	45	3	3	335000	385000	3100	3600	6.62
NU2319	NJ	NUP	N	-	200	67	3	3	395000	495000	3000	3500	9.2
NU2319E	NJ	NUP	-	-	200	67	3	3	460000	585000	2700	3200	9.8
NU419	NJ	NUP	N	NF	240	55	4	4	400000	445000	2500	2900	13.
