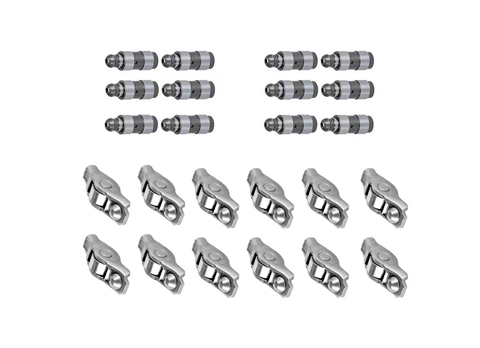

Tappet Guide

Primary Functions:

• Maintains perpendicular alignment between lifter and camshaft

• Controls lateral movement to prevent cam lobe scuffing

• Provides optimal oil clearance for hydrodynamic lubrication

• Distributes side loads evenly across the lifter body

Material Specifications:

• Standard production: SAE G2500 cast iron

• Performance applications: hardened steel or bronze alloys

• High-end racing: DLC-coated aluminum for weight reduction

Dimensional Tolerances:

• Typical bore diameter: 0.8125"-1.125" (varies by engine)

• Standard wall clearance: 0.0015-0.0035" (cold)

• Thermal expansion allowance: 0.0005"/100°F

Common Failure Modes:

1. Bore wear (taper or ovalization)

2. Galling from oil starvation

3. Fracture due to excessive lifter play

4. Corrosion pitting in E85 applications

Performance Considerations:

• Reduced-clearance guides for solid lifters (0.0008-0.0012")

• Grooved designs for improved oil retention

• Offset guides for cam timing adjustments

• Cryo-treated versions for endurance racing

Inspection Protocol:

1. Measure bore ID at multiple depths

2. Check for visible scoring or discoloration

3. Verify oil passage alignment

4. Test lifter fit with go/no-go gauge

Replacement Guidelines:

• Always replace with matched lifter sets

• Requires precision honing for proper clearance

• Mandatory break-in oil for first 500 miles

• Recommended with camshaft replacement

Specification Of Tappet Guide
