Cylinder Liner

Design & Materials

Materials: Typically made from cast iron (gray iron or ductile iron) or aluminum alloys with composite coatings for modern engines.

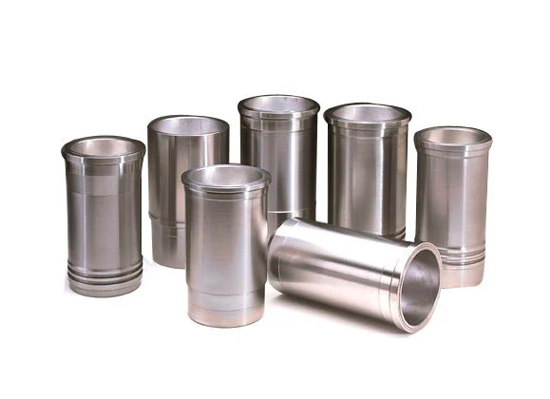

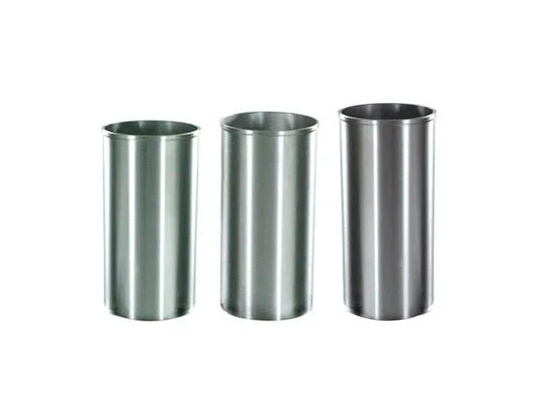

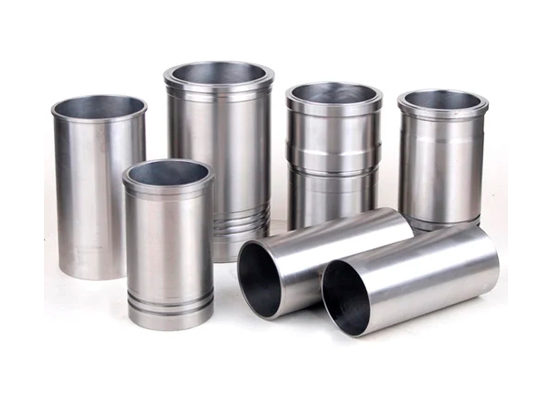

Types:

• Dry liners: Press-fit into the engine block, not in direct contact with coolant.

• Wet liners: Directly exposed to coolant, with sealing rings at top/bottom.

Surface Treatments: Chromium plating, nikasil coatings, or honing patterns to enhance oil retention.

Key Functions

1. Wear Resistance: Provides a hard, smooth surface for piston rings to slide against.

2. Heat Dissipation: Transfers combustion heat to coolant (in wet liners) or engine block.

3. Dimensional Stability: Maintains precise cylinder shape under extreme temperatures.

Performance Challenges

• Must withstand temperatures exceeding 300°C and pressures over 100 bar.

• Combustion byproducts cause abrasive wear and corrosion.

• Thermal expansion requires careful clearance management.

Maintenance & Failure Modes

Common issues include:

• Scoring/scuffing from poor lubrication

• Pitting corrosion from acidic combustion products

• Cavitation erosion in wet liners

Regular oil changes and coolant maintenance are essential for longevity.

Industry Trends

• Downsizing: Thinner, stronger liners for compact engines.

• Advanced Coatings: Plasma-sprayed composites replacing traditional materials.

• Electrification Impact: Some hybrid engines eliminating liners in favor of coated aluminum bores.

Conclusion

As engines push efficiency boundaries, cylinder liner technology evolves through material science and manufacturing innovations. Whether as removable sleeves or integrated surfaces, they remain fundamental to engine durability and performance.
