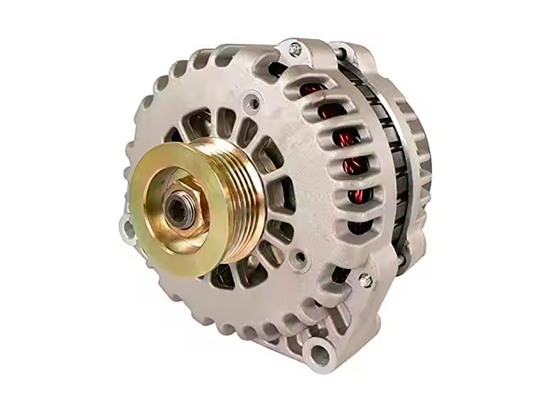

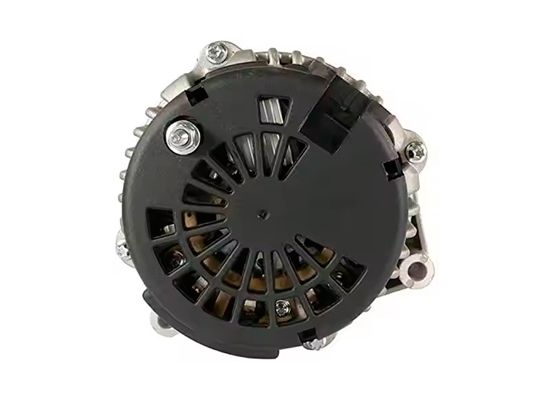

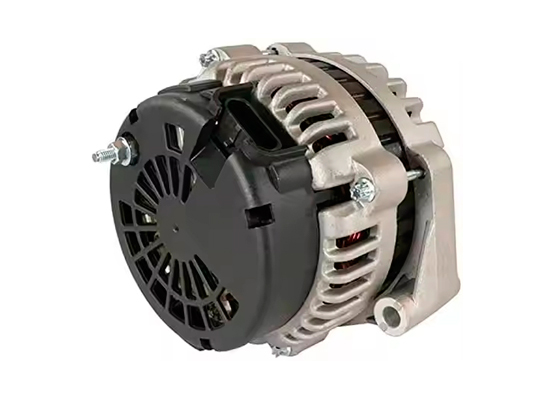

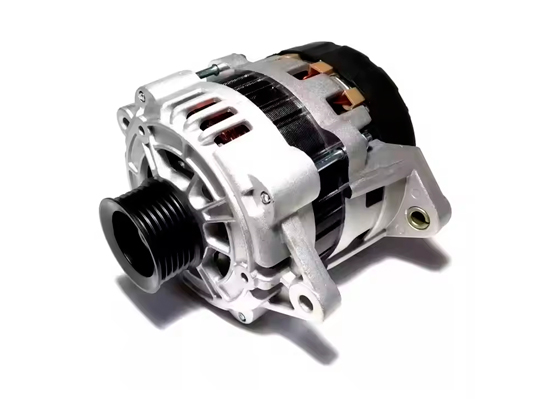

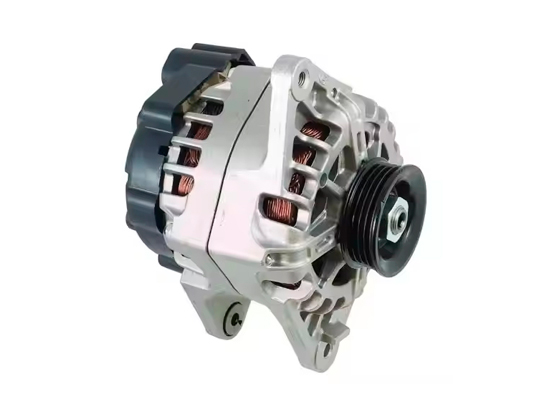

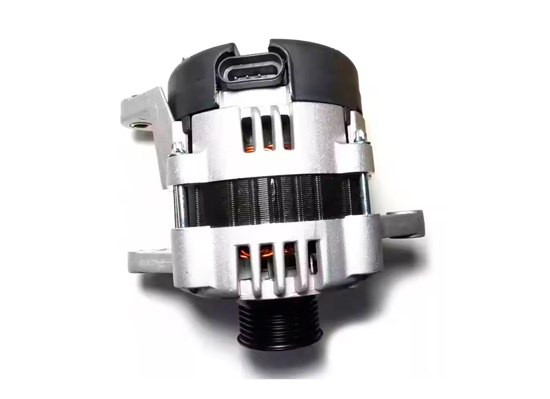

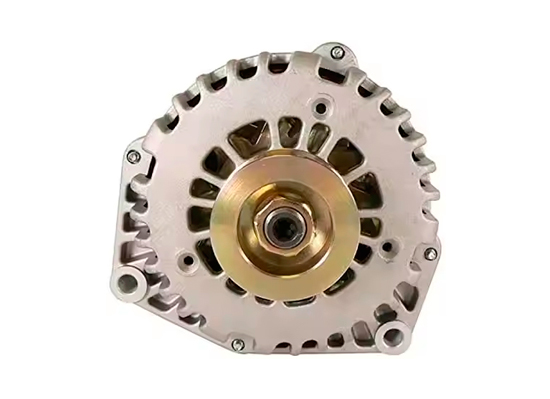

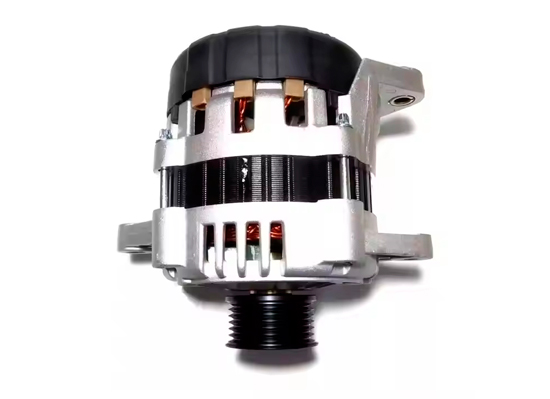

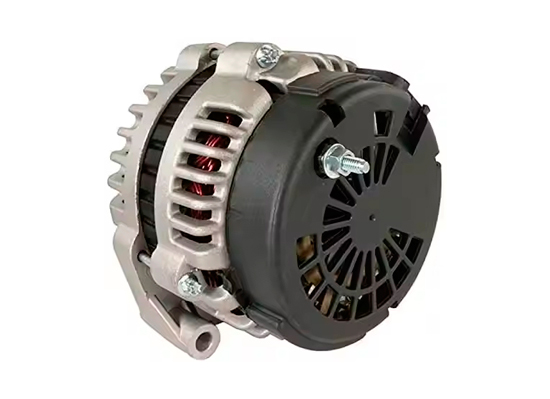

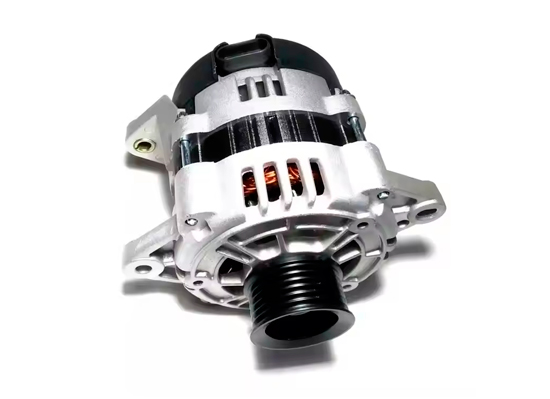

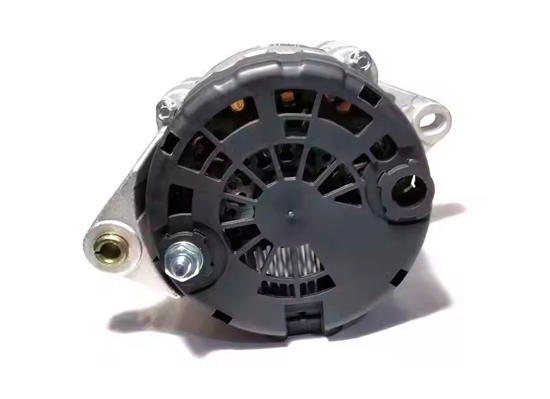

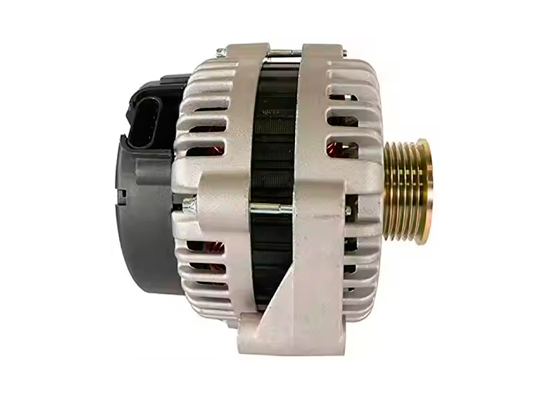

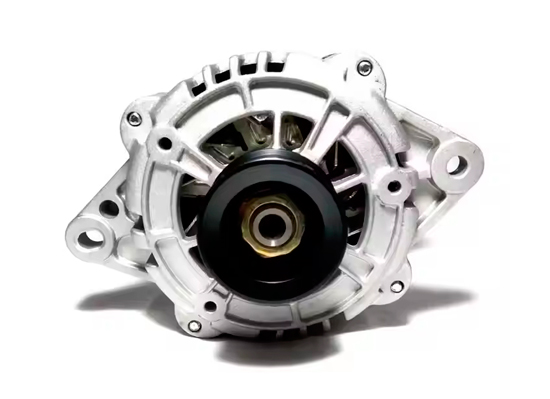

Alternador

Key Components:

• Stator/Rotor: 3-phase windings producing AC current

• Diode Rectifier: Converts AC to DC (600W+ capacity)

• Voltage Regulator: Maintains 13.8-14.4V output

Critical Functions:

• Battery Charging: Compensates for discharge cycles

• System Power: Supplies all electrical loads during operation

• Load Management: Adjusts output to demand

Technical Specifications:

• Efficiency: 55-75% (improved in modern designs)

• RPM Range: 1,500-15,000 (2-3x engine speed)

• Bearing Life: 100,000+ mile design standard

Common failure symptoms:

• Dimming lights (undercharged condition)

• Whining bearings (wear indicator)

• Battery warning light activation

Modern advancements include:

• Smart regenerative systems

• Integrated starter-generators (ISG)

• Lightweight high-output designs

This vital component typically lasts 7-10 years while powering increasingly complex vehicle electrical systems.

Alternador Catalogue

PICTURE	MODEL	OUTPUT	REF.NUMBER	APPLICATION
	DPATZ2701 DPATZ232 DPATZ1591 DPATZ127	24V 27A 24V 35A 12V 55A 12V 27A	0120489728 0120489727, CA187IR 0120489725, CA186IR 0 986 031 310 0120 489 723	MERCEDES-BENZ OM-355, 1422, 1425, 1622, 1625, 1628, 1632, 1633, 1638 same outside but different output
	DPATZ155 DPATZ233 DPATZ254 DPATZ288	12V 55A 24V 35A 24V 55A 24V 28A	0120489710, CA339IR 0 986 031 270 0120488224, CA341IR	IVECO, KHD CONSTRUCTION, MAGIRUS-DEUTZ, MERCEDES-BENZ UNIMOG same outside but different output
	DPATZ2591 DPATZ159 DPATZ2992	24V 55A 12V 55A 24V 80A	0 120 469 982 0 120 469 686 0 986 037 410 CA333IR	MERCEDES-BENZ NKW same outside but different output
	DPATZ299 DPATZ2995	24V 80A 24V 55A	0 120 468 037 0 120 468 114 0 986 037 760 CA853IR	VOLVO F12-20, 25, 33, F16-20, 25, 33, N12 same outside but different output
	DPATZ1916	12V 90A	0 123 335 002/3 0 120 485 022 0 986 038 170 CA1044IR LESTER:13611, 13613	MERCEDES-BENZ C 200/220/250 D, E 250/300 D, 312/412 DIESEL
	DPATZ194	12V 120A	0 123 500 001/2 0 123 510 023 0 120 465 015 0 986 037 990 CA1477IR	MERCEDES-BENZ S280, 300SE, 300SL, DAEWOO SSANGYONG
	DPATZ198	12V 100A	0 123 505 002 CA1053IR 6204000	OPEL, VAUXHALL different output and pulley, but same body
		12V 100A	CA1473IR
	DPATZ231 DPATZ136	24V 35A 12V 35A	0 120 488 277 0 120 488 278 0 986 037 440 CA854IR	MAN L2000 8, 9, 10, 153F 4×2 RIGID, MERCEDES-BENZ HCV, LCV, PSV same outside but different output
	DPATZ282	24V 80A	0124 555 013	MERCE ACTROS, MERCE ATEGO, MERCE UNIMOG
	DPATZ282A	24V 80A	0124 555 001 0124 555 002 0124 555 004 0124 555 022 CA1666IR	MERCE ACTROS, MERCE ATEGO, MERCE UNIMOG
