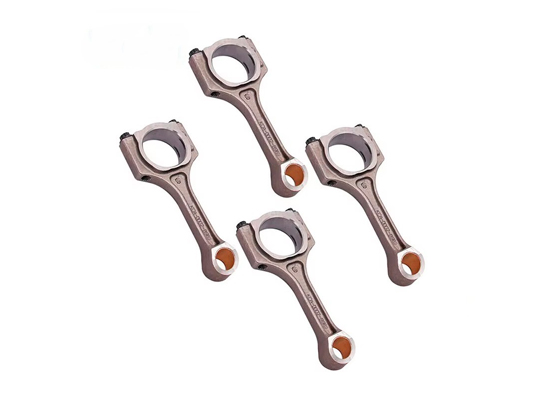

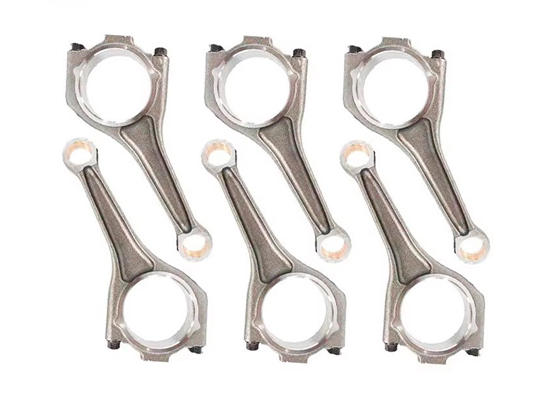

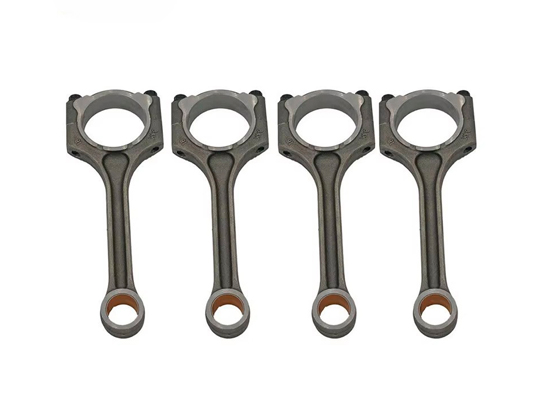

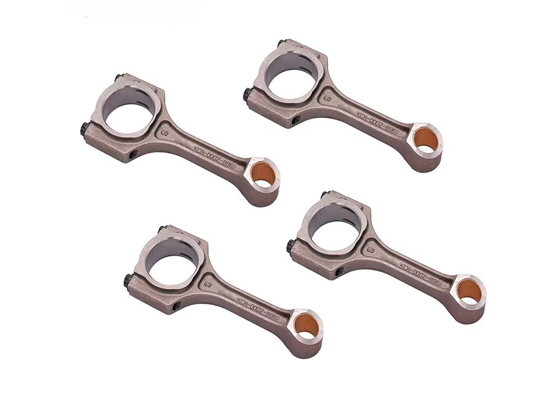

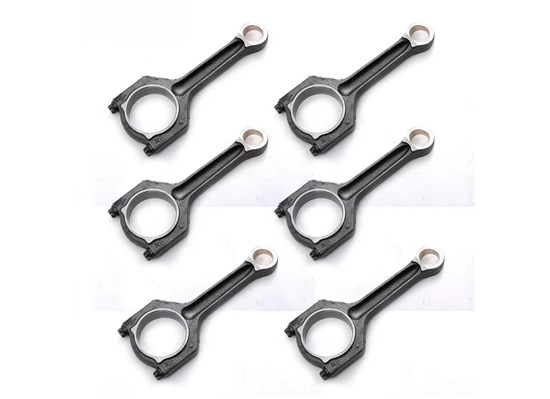

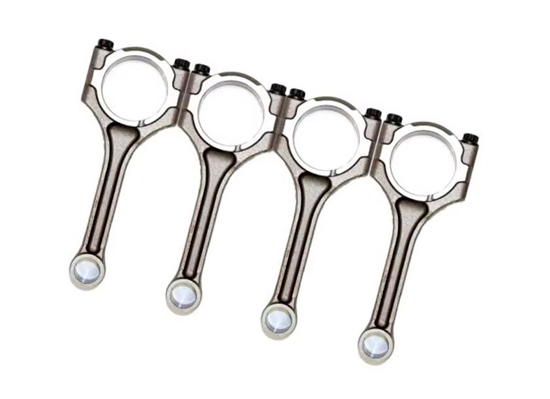

Connecting Rod

Design & Construction

Modern connecting rods are typically made from high-strength materials such as forged steel, alloy steel (e.g., 4340 or 42CrMo), or—in high-performance applications—titanium or aluminum alloys. The rod consists of three main sections:

• Small end: Connects to the piston via a wrist pin (gudgeon pin).

• Rod shank: Designed to withstand cyclic stress while minimizing weight.

• Big end: Splits into two halves (cap and rod) to attach to the crankshaft, secured by high-tensile bolts.

Key Functions

1. Power Transmission: Transfers combustion force from the piston to the crankshaft.

2. Motion Conversion: Translates reciprocating motion into rotational torque.

3. Lubrication: Engine oil flows through passages or splashes to reduce friction at bearing surfaces.

Performance Requirements

• Strength & Durability: Must endure extreme pressures (up to 10,000 psi in turbocharged engines) and inertial forces at high RPMs.

• Lightweighting: Reduced mass improves fuel efficiency and allows higher engine speeds.

• Precision Engineering: Tight tolerances ensure smooth operation and minimize wear.

Failure Modes & Maintenance

Common issues include bearing wear (leading to knocking sounds), rod bending (from detonation or hydrolock), or fatigue fractures. Regular oil changes and avoiding engine over-revving are critical for longevity.

Innovations & Future Trends

• Advanced Materials: Carbon fiber and hybrid composites for weight reduction.

• Additive Manufacturing: 3D-printed rods with optimized topology.

• Hybrid Engine Adaptations: Modified designs for use in range-extender hybrid systems.

Conclusion

As engines evolve toward higher efficiency and electrification, the connecting rod remains indispensable in optimizing combustion power. Its continuous refinement underscores its role in automotive engineering excellence.
